DIY Aluminum Ramp Kit

DIY Aluminum Ramp Kit

$129.99

Shipping calculated at checkout

SKU: 200503 Shed Supply

Only 12 left!

Competitive Pricing

Heavy Duty Materials

Fast Shipping

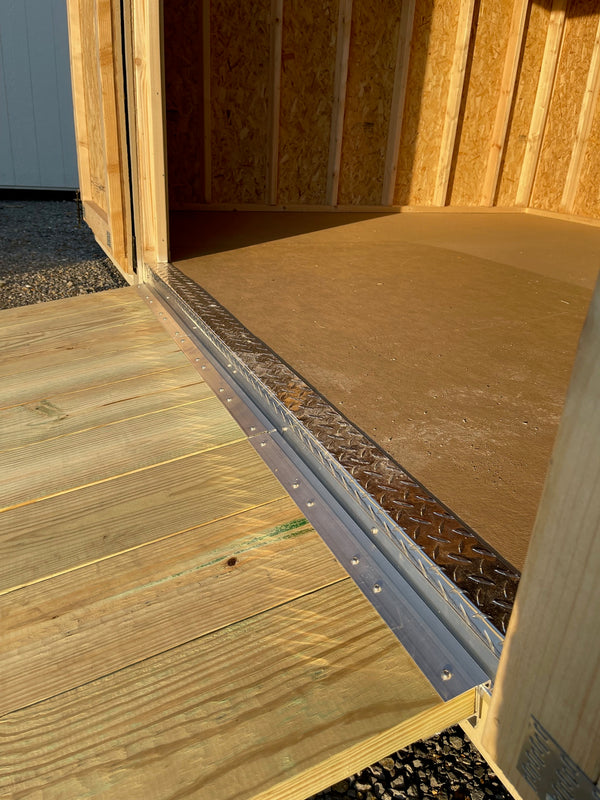

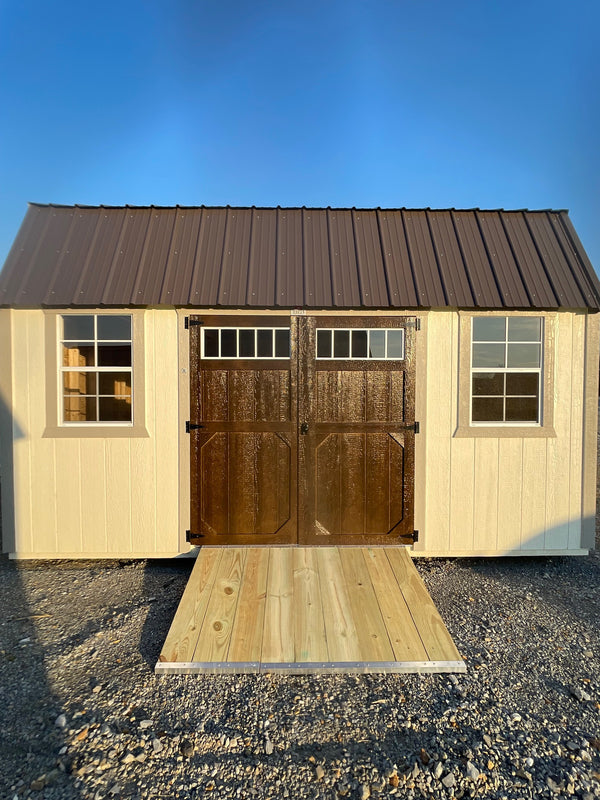

Do you need a ramp for your storage shed or barn? Our ramp installation kit makes it easy to install your very own ramp! Each kit comes with installation brackets and mounting hardware. All you need is the lumber. Please read below!! Call Or Email For More Information

Click Here For Installation Video

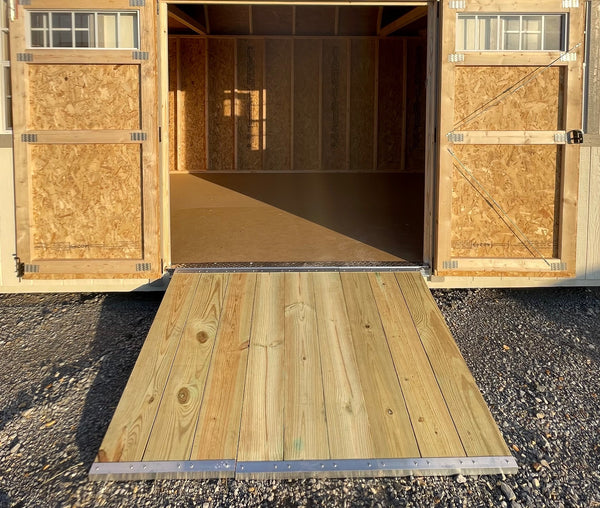

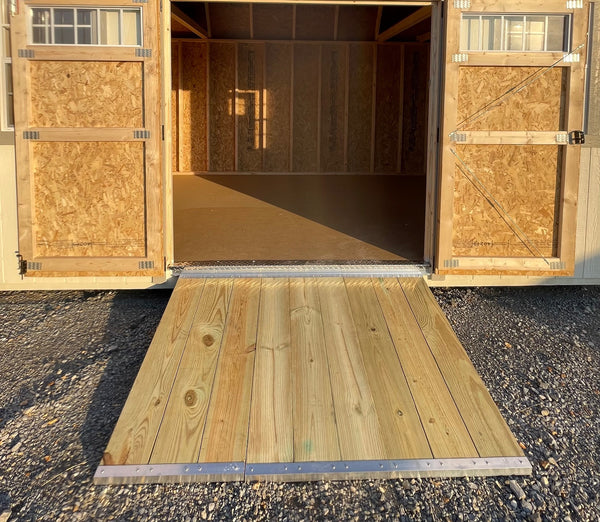

Choose Between 2x6 Lumber or 2x8 Lumber

 2x6 Lumber

We Recommend for 2x6 Pattern:

  • Actual 2x6" Measurement: 1-1/2" x 5-1/2"
  • (4) 2x6" pieces for each ramp. The length of the pieces needs to be between 4' and 6'
  • (8) boards total of 2x6" for 2-section ramp kit
  • (12) boards total of 2x6" for 3-section ramp kit

2x8 Lumber

We Recommend for 2x8 Pattern:

  • Actual 2x8" Measurement: 1-1/2" x 7-1/4"
  • (3) 2x8” pieces for each ramp. The length of the pieces needs to be between 4’ and 6’
  • (6) boards total of 2x8" for 2-section ramp kit
  • (9) boards total of 2x8" for 3-section ramp kit
2-Section
 3-Section
 4-Section
 2-Section
 3-Section
 4-Section

#200504

#200506

#200502

 #200512 #200516

#200503

#200505

#200501

 #200511 #200517



Choose Between 2,3, or 4 Section (Sizes May Vary)

2-Section
 3-Section  4-Section

2-Section Kit includes:

  • (2) cleat brackets (22" wide per ramp)
  • (1-2) J-channels (48", 60", or 72" in total)
  • (4) end caps (22" wide per ramp)
  • Screws for installation

3-Section Kit includes:

  • (3) cleat brackets (22" wide per ramp)
  • (2) 36" J-channels (72" in total)
  • (6) end caps (22" wide per ramp)
  • screws for installation

4-Section Kit includes:

  • (4) cleat brackets (22" wide per ramp)
  • (2) 48" or 54" J-channels (96" or 108" in total)
  • (8) end caps (22" wide per ramp)
  • screws for installation
2-Section
 3-Section  4-Section
  • #200503 (2x8)
  • #200504 (2x6)
  • #200505 (2x8)
  • #200506 (2x6)
  • #200501 (2x8)
  • #200502 (2x6)
  • #200351 (All Aluminum)
  • #2005011 (2x8)
  • #200512 (2x6)
  • #200595 (All Aluminum)
  • #200735 (Miscellaneous)
  • #200516 (2x6)
  • #200517 (2x8)

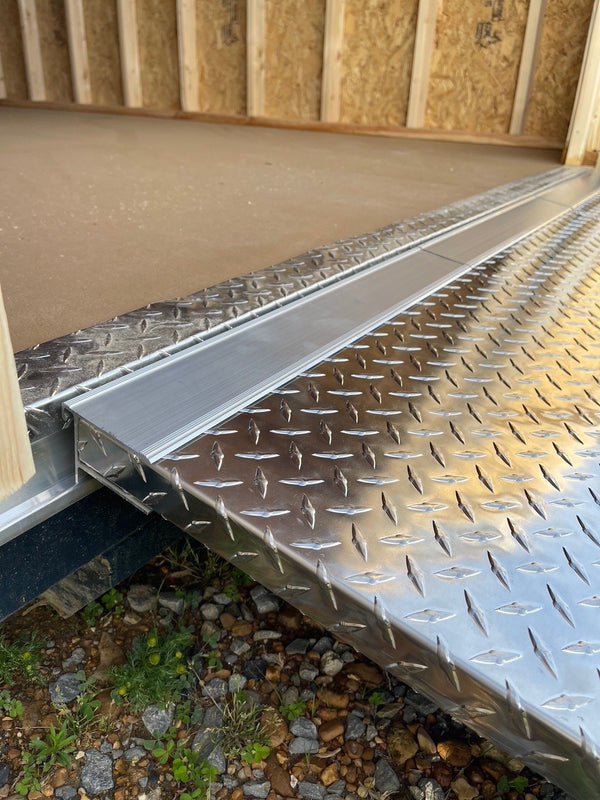

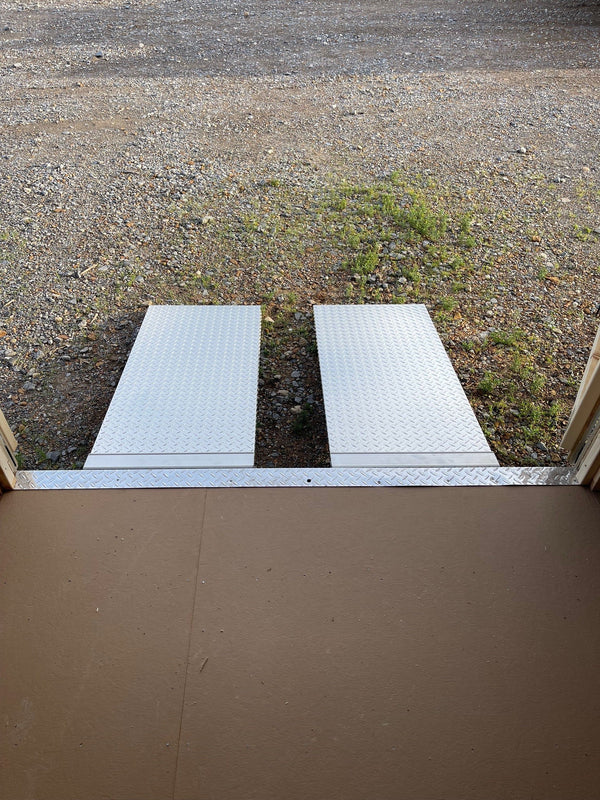

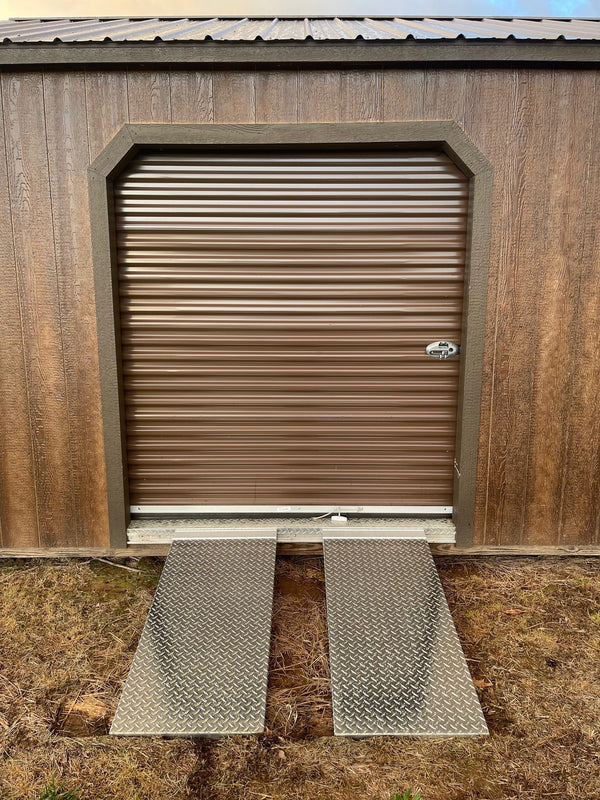

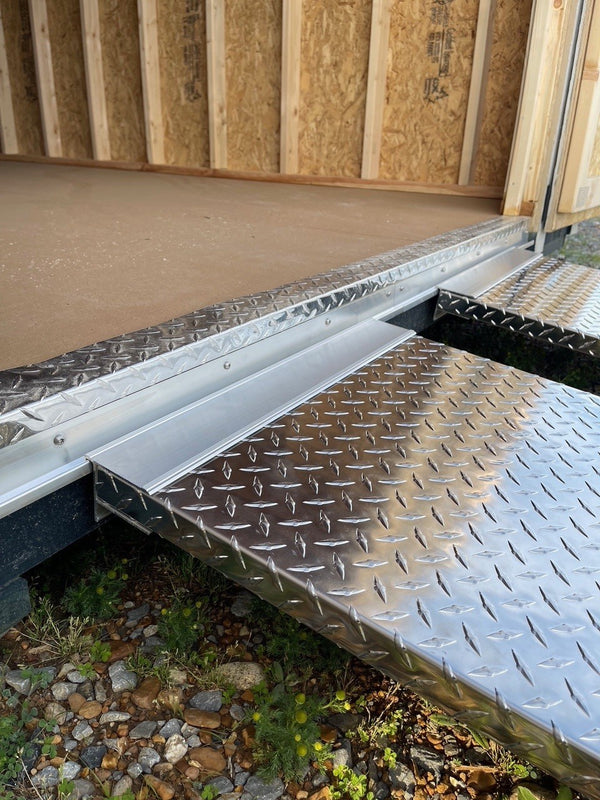

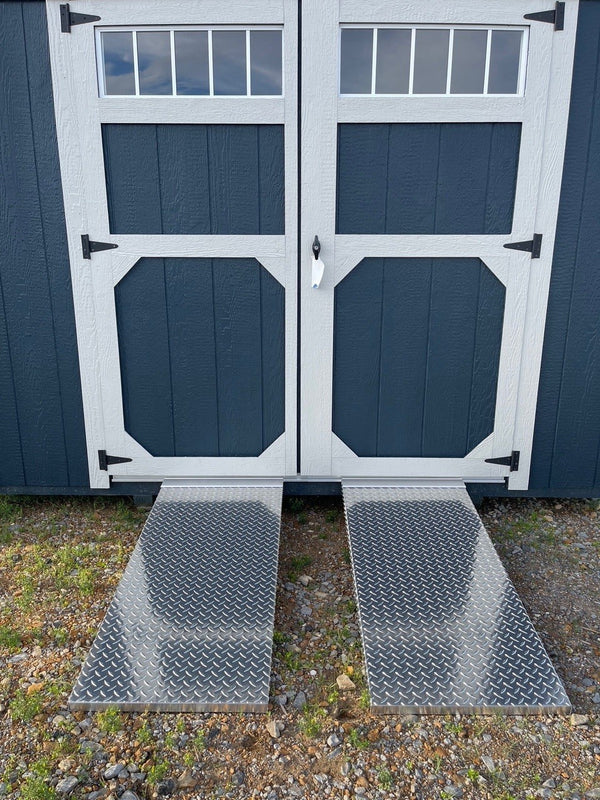

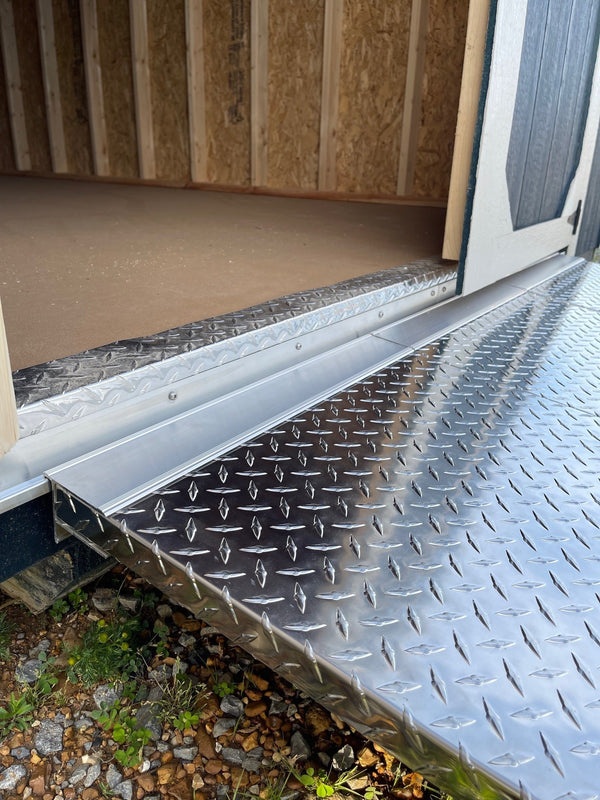

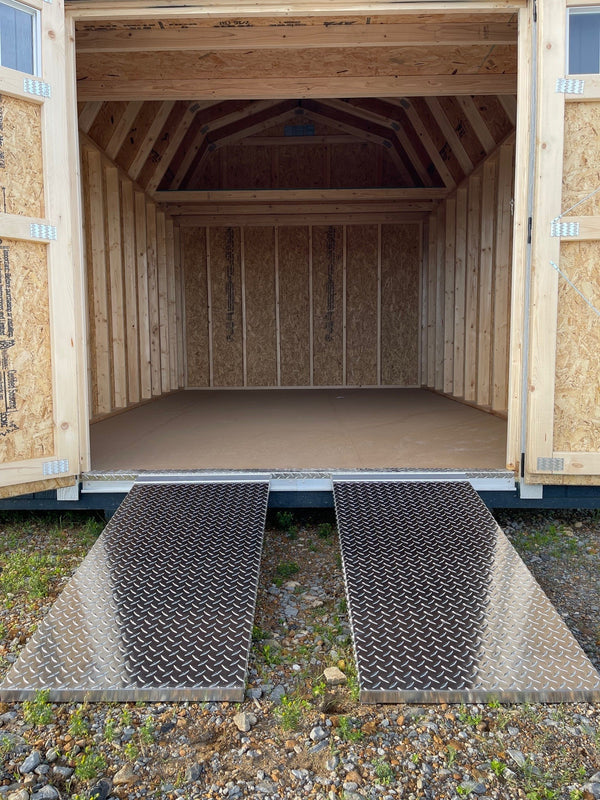

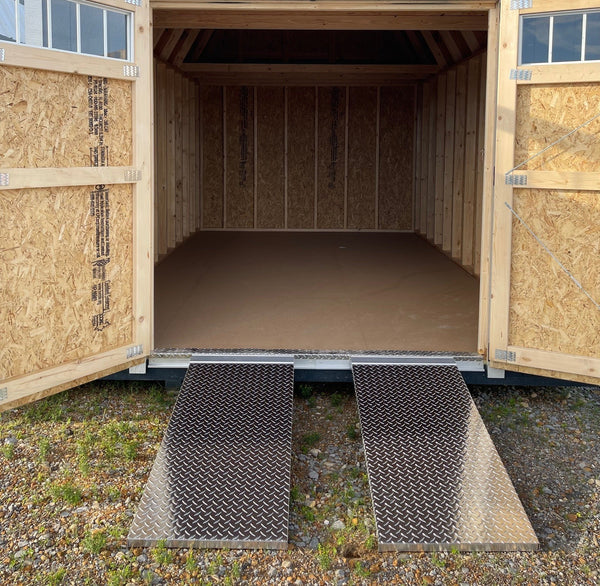

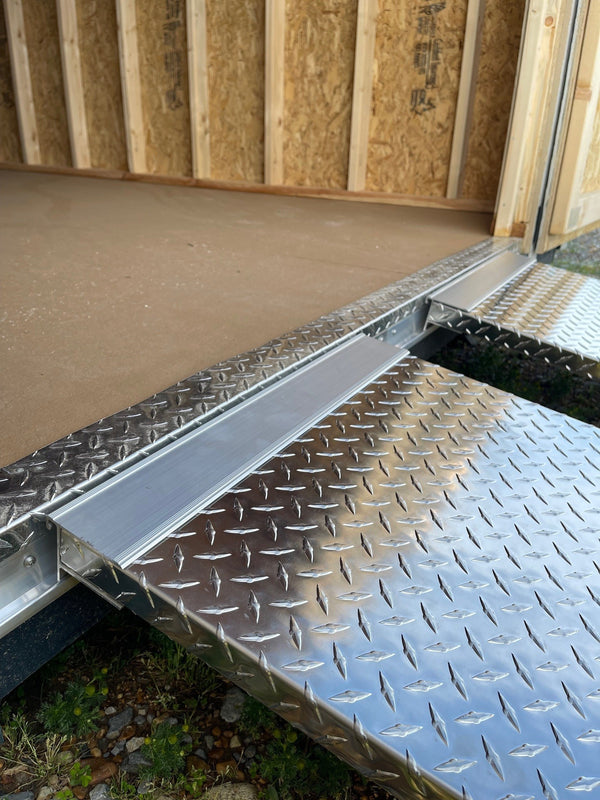

Aluminum / Diamond Plate 2 Section Ramp includes:

  • (2) aluminum ramps: 22" wide x 48" long per ramp
  • (2) J-channels 36"
  • Screws included for J-channel
  • For 48", 60", and 72" opening ( J-channels may need to be cut to size for 48" and 60" opening )
  • 1500 lbs weight rating

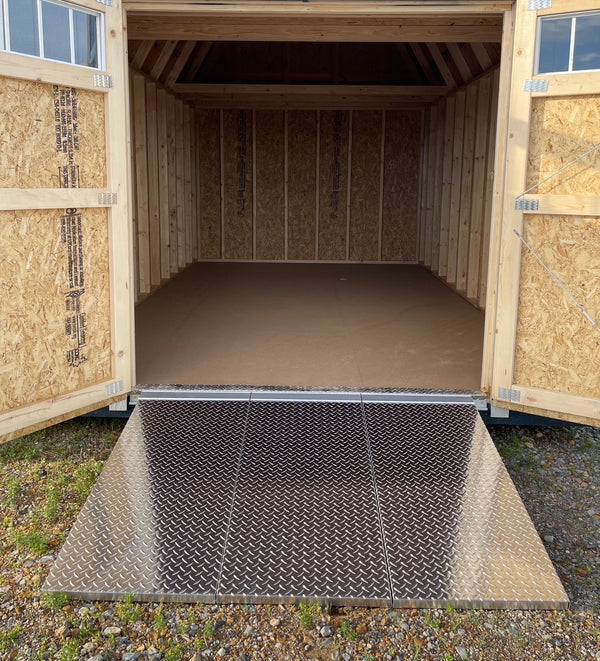

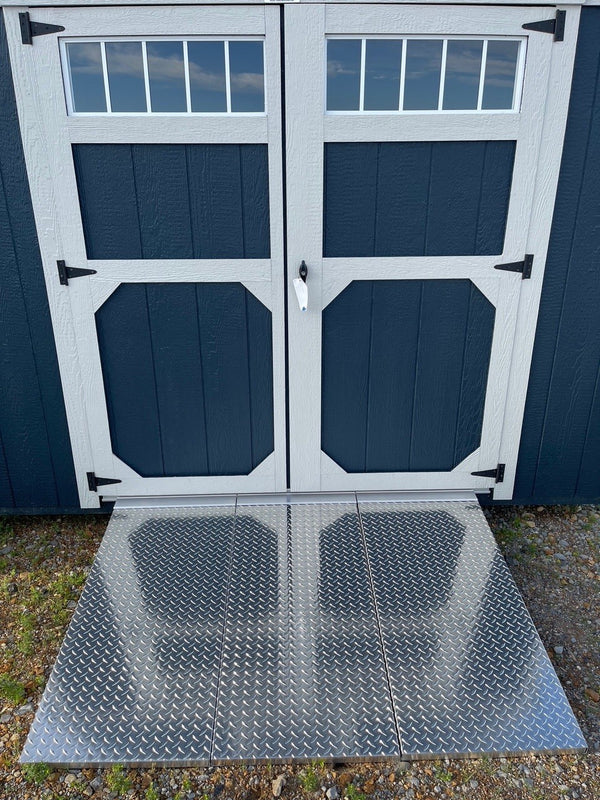

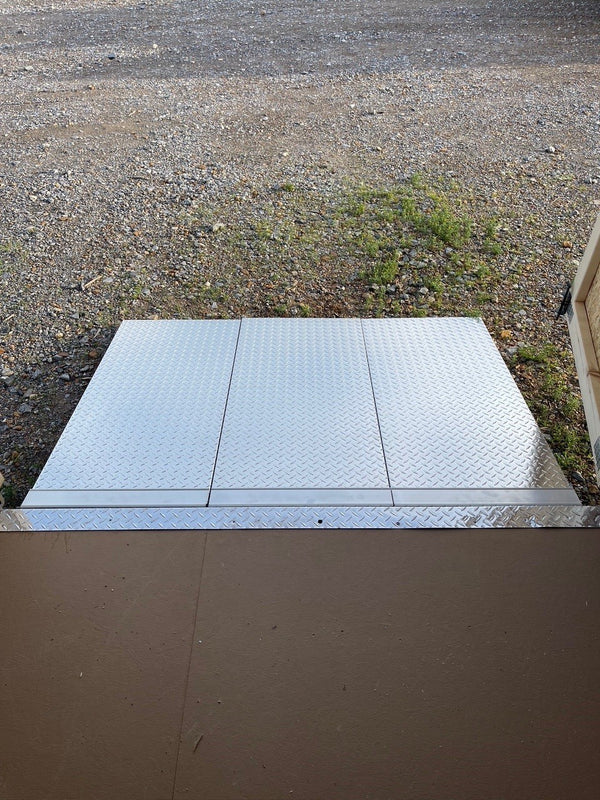

Aluminum / Diamond Plate 3 Section Ramp includes:

  • (3) aluminum ramps: 22" wide x 48" long per ramp
  • (2) J-channels 36"
  • Screws included for J-channel
  • For 72" opening or larger
  • 1500 lbs weight rating

Miscellaneous Ramp Kit Includes:

  • (3) Cleat Brackets (16" Wide)
  • (2) J-Channels 52"
  • (6) End Caps (16" Wide)
  • Screws For Installation
  • Holes are not predrilled

Every 2-Section Kit comes with brackets to make (2) ramps, measuring 22" wide per ramp. 44" in total width.

Every 3-Section Kit comes with brackets to make (3) ramps, measuring 22" wide per ramp. 66" in total width.

Every 4-Section Kit comes with brackets to make (4) ramps, measuring 22" wide per ramp. 88" in total width.

6 boards total for 48" , 60" , 72"  2-section ramp kits (2x8 pattern)

8 boards total for 48", 60", & 72" 2-section ramp kits (2x6 pattern)

9 boards total for 72"  3-section ramp kits (2x8 pattern)

12 boards total for 72" 3-section ramp kits (2x6 pattern)

16 boards total for 96" 4-section ramp kit (2x6 pattern)

Aluminum Diamond Treadplate sold separately
